Maquinaria Lorenzana S.A.

TECHNICAL FEATURES

Production capacity:

2,5 m3 (2,500 l)

Engine:

CAT C4.4 ACERTSTAGE III
CAT 3.6 STAGE V

Engine power:

106 Kw Stage III
100 Kw Stage V

Cabin:

ROPS - FOPS

Weight :

4.950 Kg

Measurements:

6.800mm x 1.900mm x 2.270mm

Internal steering radius:

4.430mm

External steering radius:

6.850mm

Slope:

30% S.A.E.

Cabin climate control:

Yes

Oil Tank:

290 l

Fuel Tank:

190l

Transmission:

Hydrostatic

Pouring Chute:

Yes

Hydraulic cover:

Yes

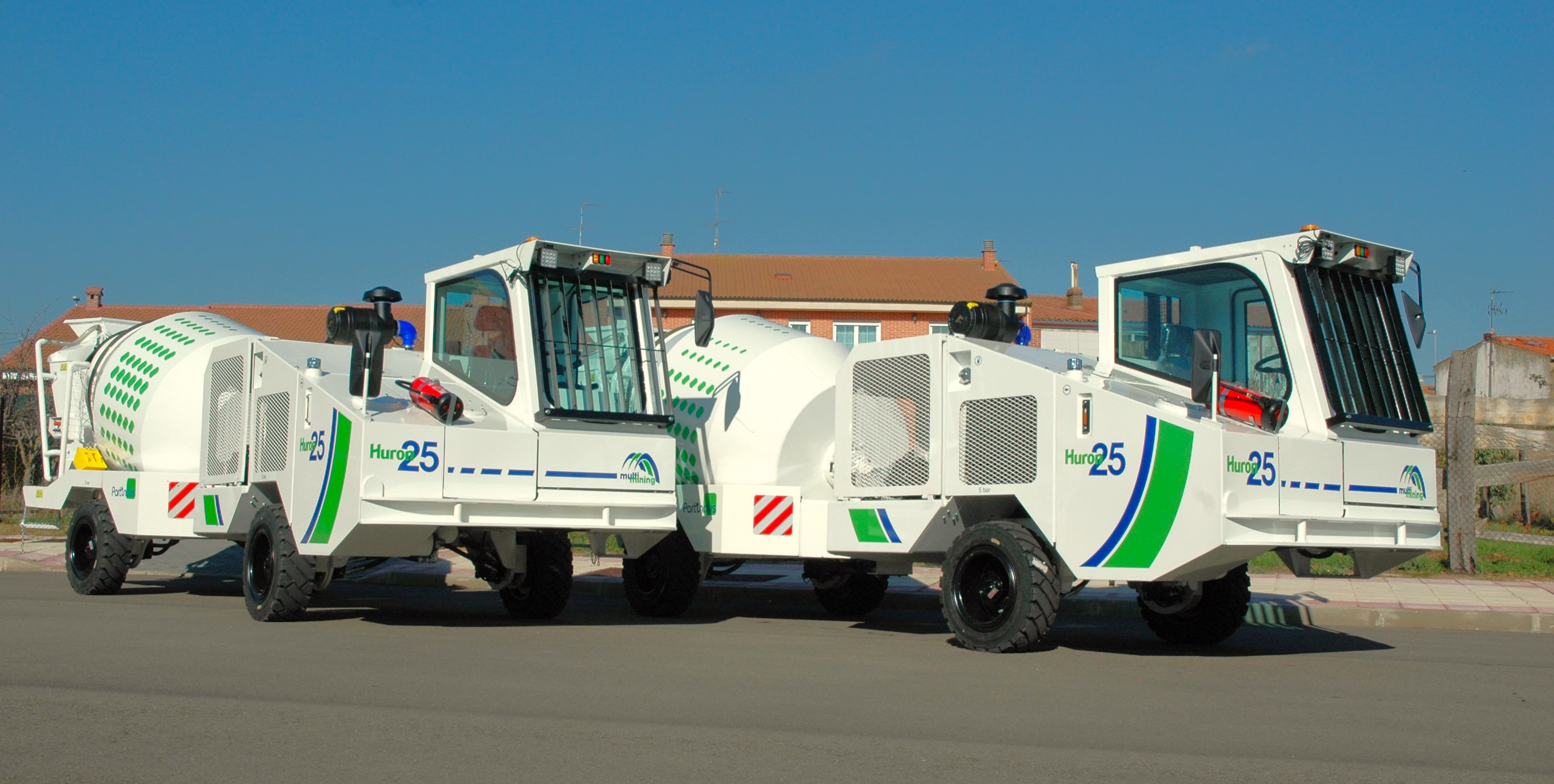

HURON 25 is a mixer unit with 2,5 m3 output capacity and small dimensions, designed for transporting and mixing concrete, whether it is dry mixture or ready-wet, in tunnels and galleries of very low profile, where other equipment is unable to reach.

It has an articulated tubular frame chassis, specially designed for heavy-duty and composed of a front chassis with cabin, on which it is mounted the diesel engine and the hydraulic system and a rear chassis and central joint. Its swiveling driver’s place gives it a great maneuverability at limited areas.
