Maquinaria Lorenzana S.A.

TECHNICAL FEATURES

Engine:

CAT C4.4 ACERT STAGE III
CAT C3.6 STAGE V

Engine power:

106 Kw Stage III
100 Kw Stage V

Cabin:

ROPS - FOPS

Weight :

11.700 Kg

Measurements:

6645mm x 2000mm x 2350mm

Internal steering radius:

3200mm

External steering radius:

5900mm

Slope:

30%

Cabin climate control:

Yes

Brakes:

Service (oil bath) 4-wheel Multidisc
Parking 4-wheel negative

Water Tank:

205l

Oil Tank:

370l

Fuel Tank:

240l

Tyres:

12 R 16,5

Speed:

20 km/h

Transmission:

Hydrostatic

Spraying arm:

BT10

Vertical slope:

8500mm

Horizontal scope:

6900mm

Concrete pump:

Aliva 272

Output concrete pump:

20 m3/h

Coiler:

50m

Additives tank:

600l

High pressure pump:

Yes

Compressor:

Optional 55kw

Electric engine:

Yes

Remote control:

Yes

Extremely robust rigid chassis. Very accessible maintenance elements.

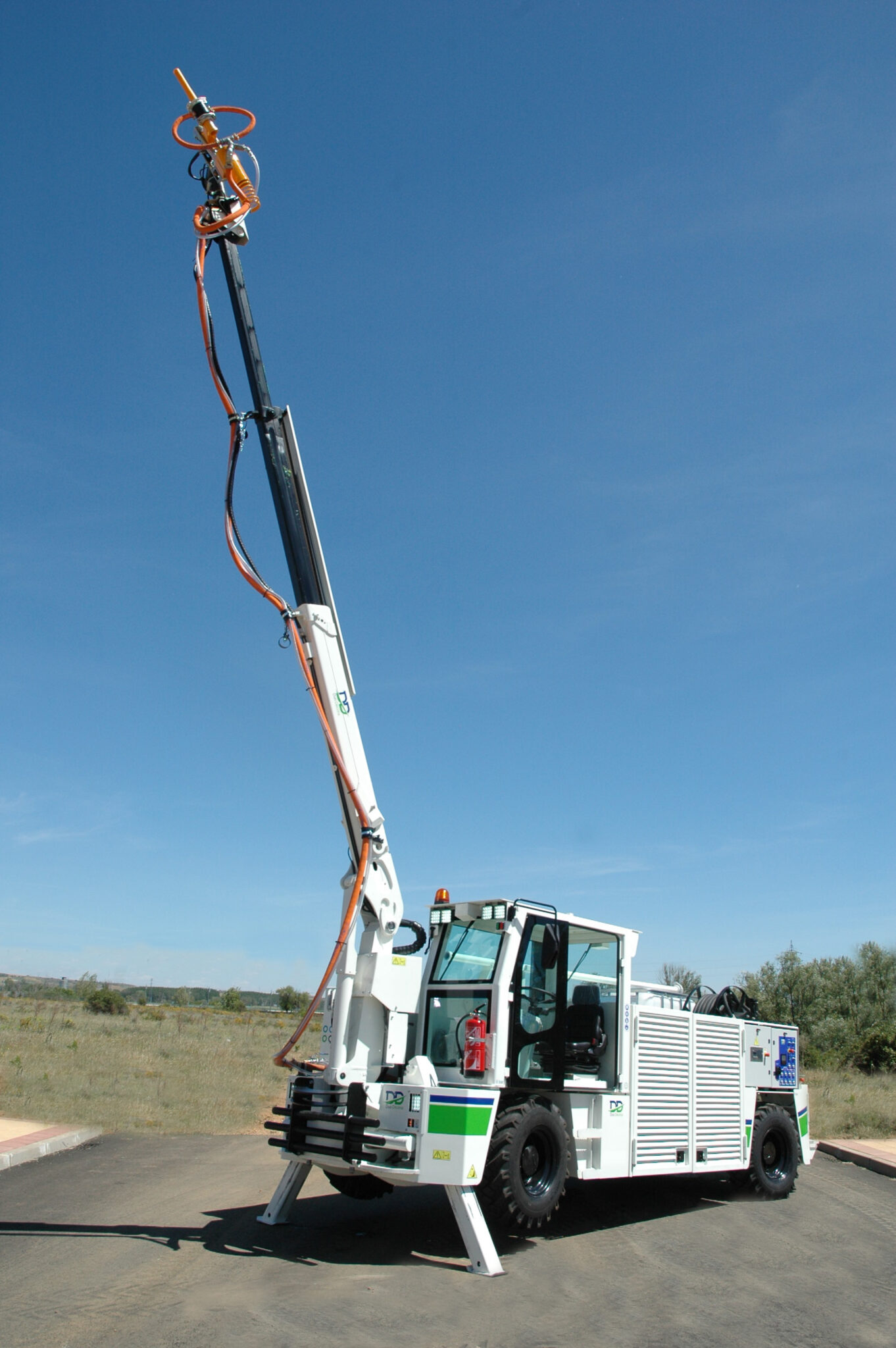

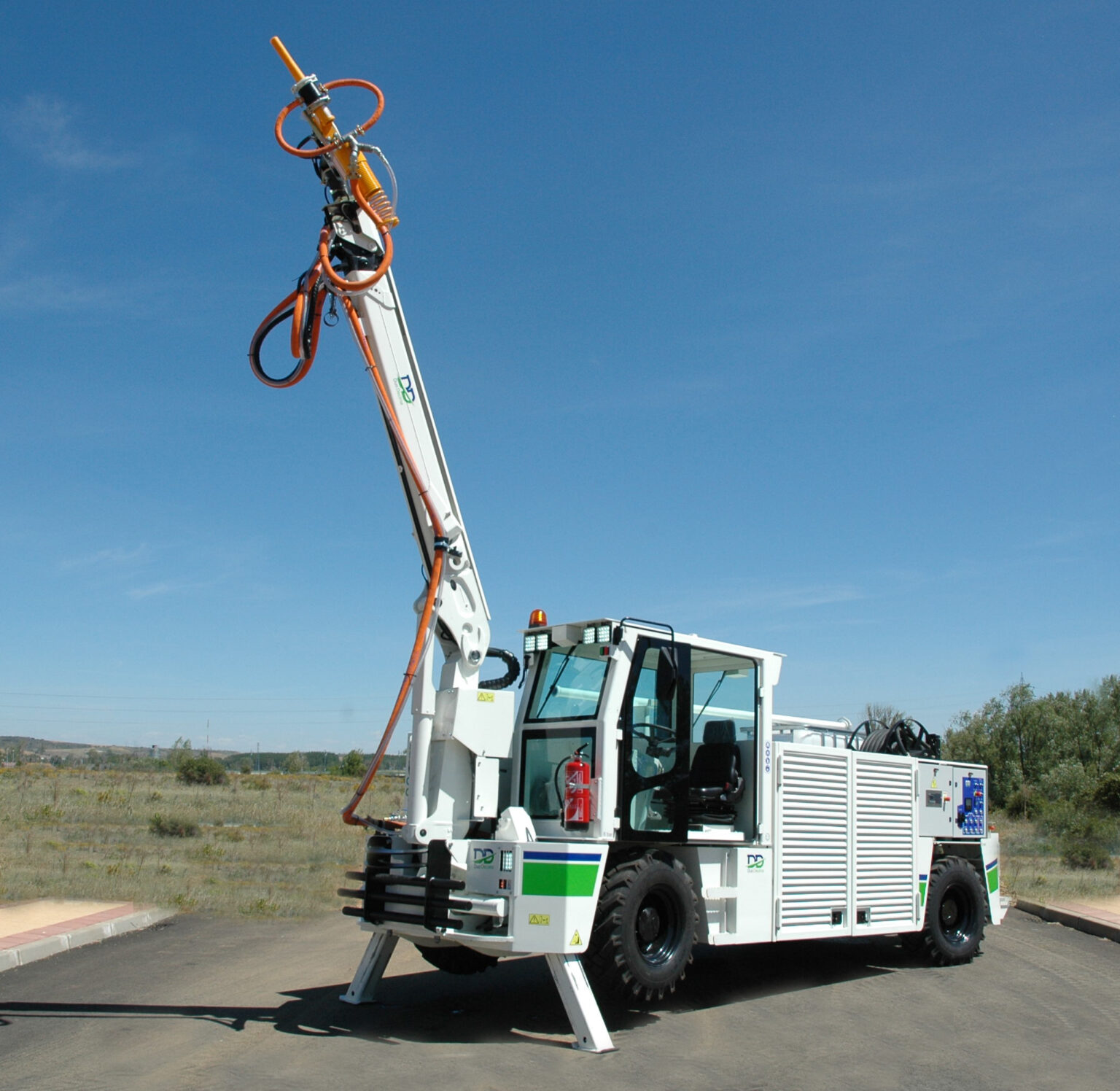

20 m3/h concrete pump. Arm reach of 10m
